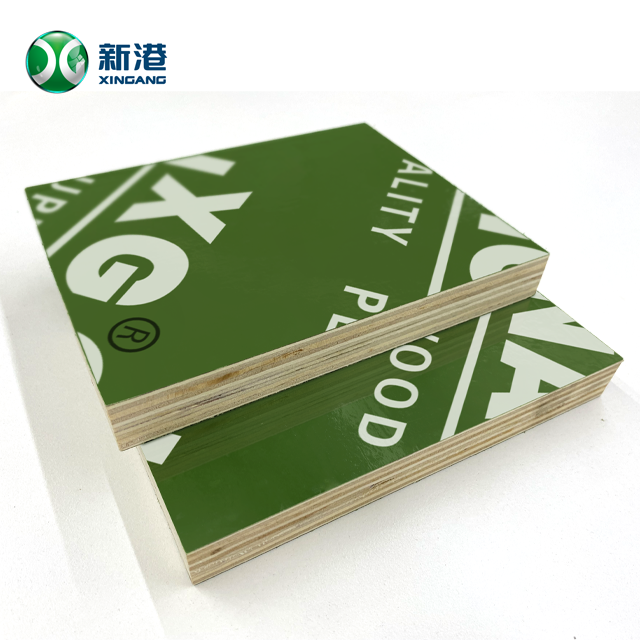

Green Pp Plastic Plywood

Product Name

PVC Green Plastic Film Faced Plywood for Concrete Formwork

Size

1220x2440mm, 1250x2500mm, 915x1830mm or as client’s request

Thickness

9~25mm

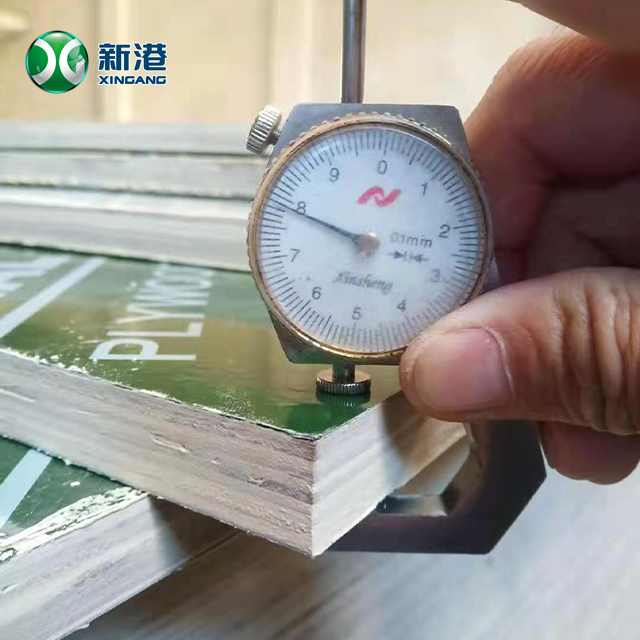

Thickness Tolerance

+/-0.3~0.5mm

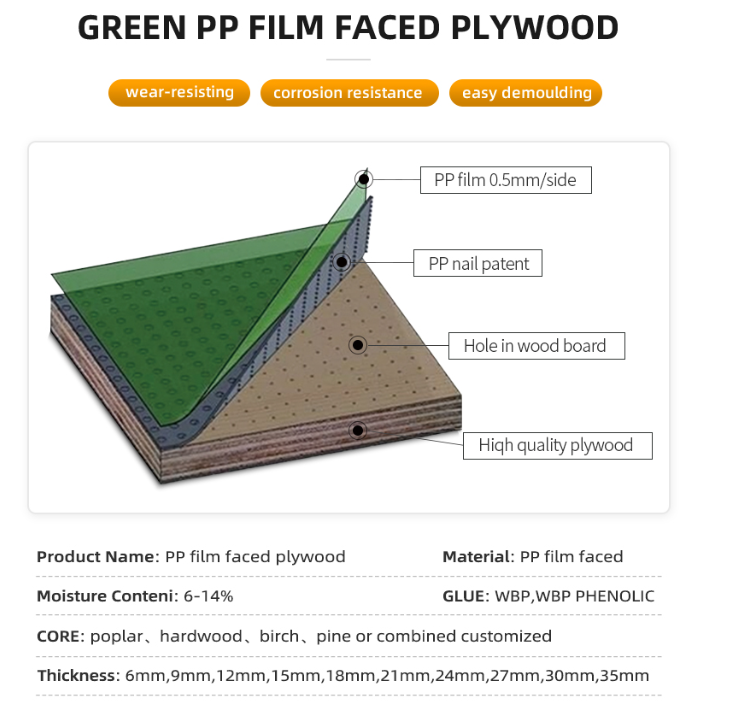

Face/Back

Green film + PP plastic film

Core

Poplar, hardwood, eucalyptus, birch, pine, combi, etc.

Joint Way of The Core

Overlap joint, end joint, scarf joint or finger joint

Edge Treatment

Sealed by waterproof paint

Glue

MR, Melamine or WBP

Grade

Two time hot press

Density

500~680kg/m3

Technical Parameters

Moisture Content

10%~15%

Water Absorption

≤10%

Modulus of Elasticity

≥5000Mpa

Static Bending Strength

≥30Mpa

Surface Bonding Strength

≥1.60Mpa

Internal Bonding Strength

≥0.90Mpa

Screw Holding Ability

Face

≥1900N

Edge

≥1200N

Usage & Performance

Green PP plastic film faced plywood is a new developed formwork plywood which widely used for construction concrete formwork. It has many advantages compared with iron formwork and common film faced plywood. The advantages are as below:

1. The biggest size of the film faced plywood is 1250x2500mm, which could decrease the number of the joints and increase the working efficiency.

2. Light weight, It's more suitable for high-rise building and bridge construction.

3. It can be used for more than 25 times if used and stocked correctly, which can save the cost greatly.

4. It can keep the surface smooth and beautiful when used for pouring, and you don't need to plaster the wall for second time, as it can decorate directly that can decrease the construction period by 30%.

5. It will not pollute the surface of the concrete, but iron formwork has the disadvantages of rusty and erosive, etc.

6. It is good for construction in winter that it can be used as template for curved surface.

7. It is better than bamboo plywood and small steel plywood in terms of nailing, sawing and drilling. It can be processed to template with all shapes according to needs.

Packing

Standard Export Pallet Packing

Inner Packing

Pallet is wrapped with a 0.20mm plastic bag

Outer Packing

Pallet is covered with plywood or carton and then PVC/steel tapes for strength

Loading Quantity

20’GP

8pallets/22cbm

40’HQ

18pallets/53cbm

MOQ

1x20’FCL

Supply Ability

5000cbm/month

Payment Terms

T/T or L/C at sight

Delivery Time

Within 15 days after receiving deposit or original L/C

Certification

ISO9001:2000, CE, FSC, CARB
